Invert¶
We perform imaging operations on the same visibility dataset using three different approachs and compare their precisions:
ism3d.uvhelper.inver
casatasks.tclean
galario
import numpy as np
from astropy.io import fits
import matplotlib as mpl
mpl.use('Agg')
mpl.rcParams['xtick.direction'] = 'in'
mpl.rcParams['ytick.direction'] = 'in'
mpl.rcParams.update({'font.size': 12})
mpl.rcParams["font.family"] = "serif"
mpl.rcParams["image.origin"]="lower"
mpl.rc('text', usetex=True)
%matplotlib inline
import matplotlib.pyplot as plt
%matplotlib inline
from astropy.wcs import WCS
from spectral_cube import SpectralCube
from spectral_cube.utils import SpectralCubeWarning
warnings.filterwarnings(action='ignore', category=SpectralCubeWarning,append=True)
warnings.filterwarnings("ignore", category=FutureWarning)
warnings.filterwarnings("ignore")
from astropy import units as u
from astropy.coordinates import SkyCoord
import finufftpy
from casatasks import mstransform
from ism3d.tests.test_import import *
workdir='/Volumes/S1/projects/alma_g09/'
import numpy as np
from astropy.io import ascii
from astropy.io import fits
hostname: Ruis-Mac-mini.local
## load UV data
dir_data='../data/g09/alma_cal/'
dir_out='../output/demo_invert_ft/'
bb4ms=dir_data+'bb4.ms'
bb4uv=ism3d.read_ms(vis=bb4ms)
pickbb='bb4' ; bbuse=bb4uv; bbms=bb4ms
2020-06-27 05:46:35 INFO msmetadata_cmpt.cc::open Performing internal consistency checks on ../data/g09/alma_cal/bb4.ms...
from ism3d.uvhelper import invert_ft,make_psf
from ism3d.meta import create_header
uvw=bbuse['uvw@'+bbms]
uu=uvw[:,0]
vv=uvw[:,1]
vis=bbuse['data@'+bbms]
wv=(bbuse['chanfreq@'+bbms]).to(u.m,equivalencies=u.spectral()).value
cell=0.2*u.arcsec
imsize=540
#phase_center = SkyCoord('09:13:38.894000 -01:07:03.62000', unit=(u.hourangle, u.deg), frame='icrs')
dxy=(cell).to_value(u.degree)
chanfreq=bbuse['chanfreq@'+bbms]
chanwidth=bbuse['chanwidth@'+bbms]
phasecenter=bbuse['phasecenter@'+bbms]
crval3=chanfreq.to_value(u.Hz)
if not np.isscalar(crval3):
crval3=crval3[0]
header=create_header(naxis=[imsize,imsize,np.size(chanfreq)],objname='G09_uvspec',
#crval=[phase_center.ra.to_value(u.deg),phase_center.dec.to_value(u.deg),crval3],
crval=[phasecenter[0].to_value(u.deg),phasecenter[1].to_value(u.deg),crval3],
cdelt=[-(cell).to_value(u.degree),+(cell).to_value(u.degree),np.mean(chanwidth.to_value(u.Hz))])
print("working on ver1")
uvspec_cube_ver1=invert_ft(uu,vv,wv,vis,cell,imsize,bychannel=False)
print("working on ver2")
uvspec_cube_ver2=invert_ft(uu,vv,wv,vis,cell,imsize,bychannel=True)
print("working on ver3")
uvspec_cube_ver3=invert_ft(uu,vv,wv,vis,cell,imsize,bychannel=True,wt=bbuse['weight@'+bbms])
tcube,thdr=fits.getdata(dir_data+'/bb04_nat_nea_th0.residual.fits',header=True)
tcube=tcube[0,:,:,:]
ver_names=['bb04_diff_ver1','bb04_diff_ver2','bb04_diff_ver3']
use_cubes=[uvspec_cube_ver1,uvspec_cube_ver2,uvspec_cube_ver3]
for i in range(3):
cube_diff=(use_cubes[i].T)[238::-1,:,:]-tcube
cube_diff=cube_diff.astype(np.float32)
fits.writeto(dir_out+'/'+ver_names[i]+'_nufft_vs_tclean.fits',cube_diff,thdr,overwrite=True)
from ism3d.uvhelper.ft import make_psf
uvspec_psf_ver3=make_psf(uu,vv,wv,cell,imsize,bychannel=True,wt=bbuse['weight@'+bbms])
fits.writeto(dir_out+'/bb04_psf_ver3_nufft.fits',uvspec_psf_ver3.T,thdr,overwrite=True)
working on ver1
2d1many: ndata=240 (ms,mt)=(540,540) (nf1,nf2)=(1080,1080) nj=1154327 ...
kernel fser (ns=16): 0.000394 s
fftw plan (64) 0.00197 s
[many] sort (did_sort=1): 0.00805 s
[many] spread: 7.64 s
[many] fft (12 threads): 1.46 s
[many] deconvolve & copy out: 0.331 s
freed
working on ver2
working on ver3
from astropy.wcs import WCS
from astropy.wcs.utils import skycoord_to_pixel, proj_plane_pixel_scales
def linear_offset_coords(wcs, center):
"""
Returns a locally linear offset coordinate system.
Given a 2-d celestial WCS object and a central coordinate, return a WCS
that describes an 'offset' coordinate system, assuming that the
coordinates are locally linear (that is, the grid lines of this offset
coordinate system are always aligned with the pixel coordinates, and
distortions from spherical projections and distortion terms are not taken
into account)
Parameters
----------
wcs : `~astropy.wcs.WCS`
The original WCS, which should be a 2-d celestial WCS
center : `~astropy.coordinates.SkyCoord`
The coordinates on which the offset coordinate system should be
centered.
"""
# Convert center to pixel coordinates
xp, yp = skycoord_to_pixel(center, wcs)
# Set up new WCS
new_wcs = WCS(naxis=2)
new_wcs.wcs.crpix = xp + 1, yp + 1
new_wcs.wcs.crval = 0., 0.
new_wcs.wcs.cdelt = proj_plane_pixel_scales(wcs)*3600.
new_wcs.wcs.ctype = 'XOFFSET', 'YOFFSET'
new_wcs.wcs.cunit = 'arcsec', 'arcsec'
return new_wcs
import matplotlib.pyplot as plt
from astropy.io import fits
from mpl_toolkits.axes_grid1 import make_axes_locatable
%matplotlib inline
%config InlineBackend.figure_format='retina'

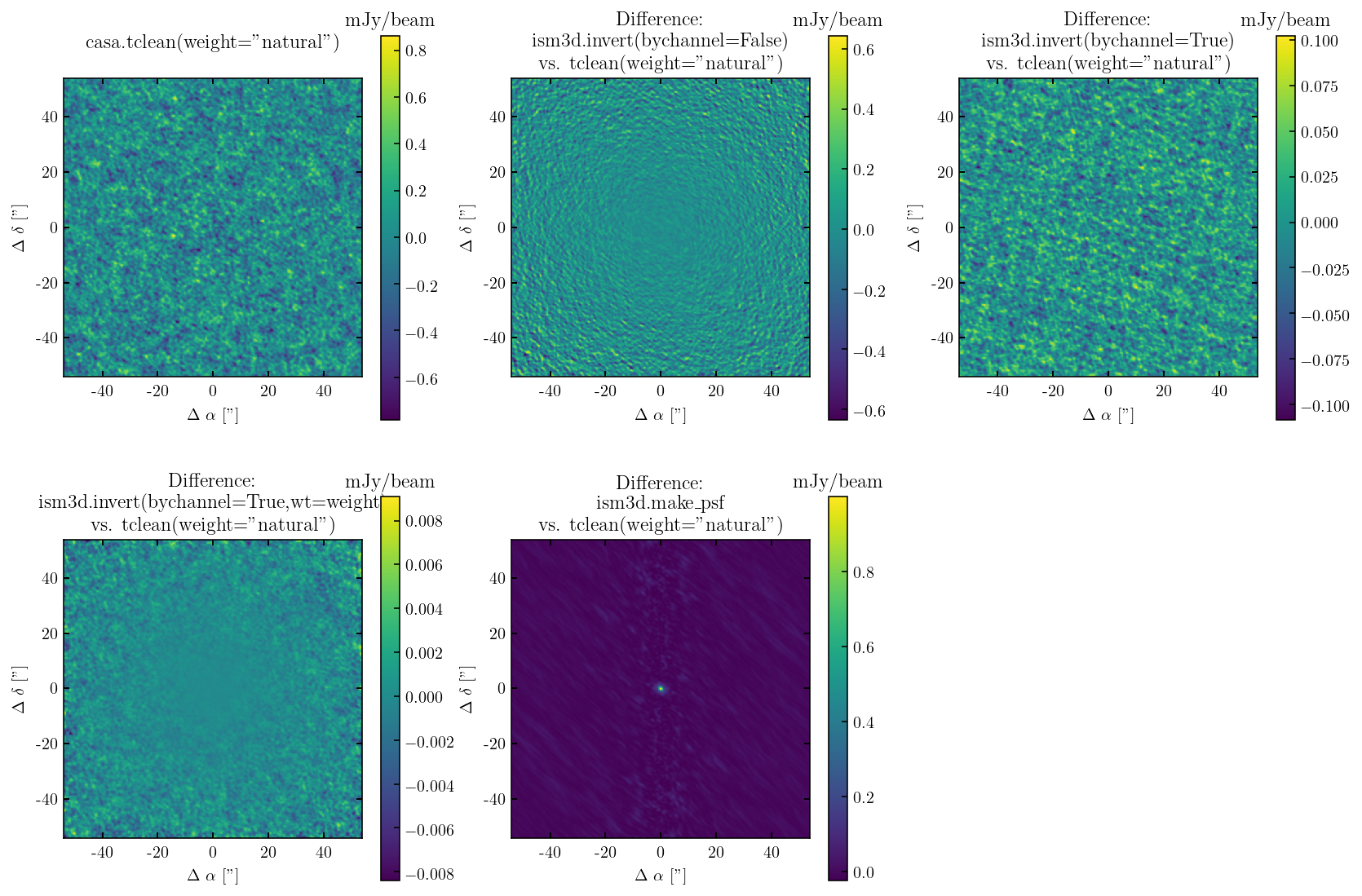

filenames = [dir_data+'bb04_nat_nea_th0.residual',
dir_out+'bb04_diff_ver1_nufft_vs_tclean',
dir_out+'bb04_diff_ver2_nufft_vs_tclean',
dir_out+'bb04_diff_ver3_nufft_vs_tclean',
dir_out+'bb04_psf_ver3_nufft']
titles=['\ncasa.tclean(weight="natural")\n',
'Difference: \n ism3d.invert(bychannel=False)\n vs. tclean(weight="natural")',
'Difference: \n ism3d.invert(bychannel=True)\n vs. tclean(weight="natural")',
'Difference: \n ism3d.invert(bychannel=True,wt=weight)\n vs. tclean(weight="natural")',
'Difference: \n ism3d.make\_psf\n vs. tclean(weight="natural")']
plt.clf()
hdr=fits.getheader(filenames[0]+'.fits')
w = WCS(hdr).celestial
coord = SkyCoord(hdr['CRVAL1'], hdr['CRVAL2'], unit="deg")
offset_w=linear_offset_coords(w,coord)
fig, axs = plt.subplots(2,3, figsize=(12,8),subplot_kw={'projection':offset_w})
fig.subplots_adjust(left=0.05, bottom=0.05, right=0.95, top=0.95, wspace=0.2,hspace=0.2)
for ii, name in enumerate(filenames):
xx,yy = int(ii/3),ii%3
data=fits.getdata(name+'.fits',header=False)
data=np.squeeze(data)[0,:,:]*1e3
if 'psf' in name:
data/=1e3
im = axs[xx,yy].imshow(data,origin='lower')
#divider = make_axes_locatable(axs[xx,yy])
#cax = divider.append_axes("right", size="7%", pad=0.05)
clb=fig.colorbar(im, ax=axs[xx,yy])
clb.ax.set_title('mJy/beam')
axs[xx,yy].set_title(titles[ii])
axs[xx,yy].set_xlabel(r'$\Delta~\alpha$ ["]')
axs[xx,yy].set_ylabel(r'$\Delta~\delta$ ["]')
#aa[xx,yy].set_title(os.path.basename(name).replace('_','.'))
#aa[xx,yy].set_aspect('auto')
fig.delaxes(axs[1][2])
#fig.tight_layout()
plt.show()
fig.savefig(dir_out+'demo_invert_ft.pdf')
<Figure size 432x288 with 0 Axes>
